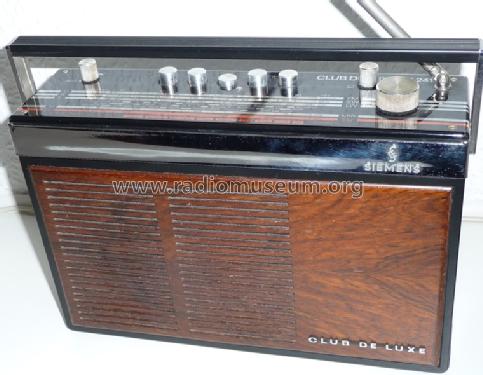

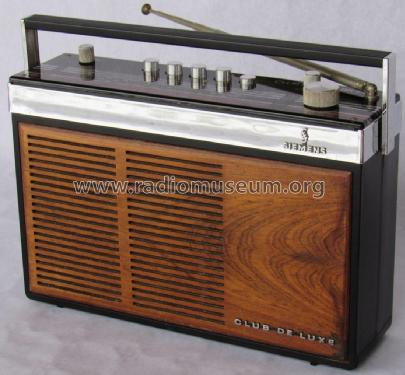

Club de Luxe RK241

• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1970/1971

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 28236

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 11

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 220 / 6×1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 2 W (unknown quality)

• Material
• Various materials

• from Radiomuseum.org
• Model: Club de Luxe RK241 - Siemens & Halske, -Schuckert

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 281 x 187 x 79 mm / 11.1 x 7.4 x 3.1 inch

• Notes
• Siemens Club de Luxe RK 241;
  UKW: ~87.5 - 104 MHz,
  KW: 31 - 49 m Band (~6 - 10 MHz),
  MW: ~530 - 1600 kHz,
  Europa Band (MW): ~1350 - 1650 kHz,
  LW; ~150 - 300 kHz,
  Klangregler, Kopfhörerbuchse, DIN Buchse für Phono & Tonband,
  Batterie-Regenerierung bei Netzbetrieb. Front aus Holz.
  Vergleiche die Besonderheit eines "Europa Band" auf Mittelwelle mit dem noch umfangreicher ausgestatteten Konkurrenzprodukt Saba "Transall de Luxe automatic E".

• Net weight (2.2 lb = 1 kg)
• 2.9 kg / 6 lb 6.2 oz (6.388 lb)

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1970/1971
