For model CLUB de Luxe RK381 (RK 3810), Siemens; D (S.& Halske / S. Electrogeräte):

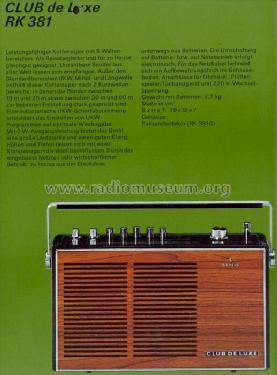

aus siemenskatalog 1973

Country:  Germany
Manufacturer / Brand:  Siemens; D (S.& Halske / S. Electrogeräte)
Year: 1973/1974 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8:
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 5 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 220 / 6×1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 2 W (unknown quality)
from Radiomuseum.org Model: CLUB de Luxe RK381 - Siemens; D S.& Halske / S.
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 290 x 180 x 70 mm / 11.4 x 7.1 x 2.8 inch
Notes Siemens CLUB de Luxe RK 381 (Ausführung RK 3810 in Palisanderdekor);
ICs: 1.
Zusätzlich zum KW Bereich gespreiztes 49-m-Band, Klangregler, DIN Eingang für Tonband-Plattenspieler, Kopfhörerbuchse, elektronische Umschaltung von Batterie- auf Netzbetrieb.
Net weight (2.2 lb = 1 kg) 2.2 kg / 4 lb 13.5 oz (4.846 lb)
External source of data Erb
Source of data Katalog RFP 1973
Mentioned in -- Original prospect or advert ((D) Katalog: Hören und Sehen mit Siemens ~1973)
