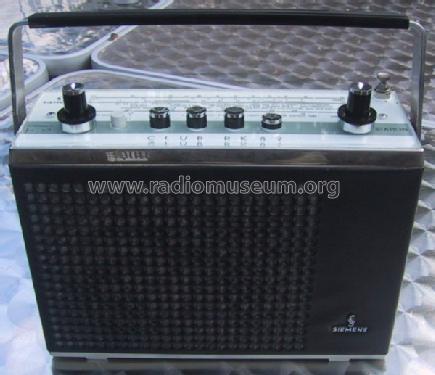

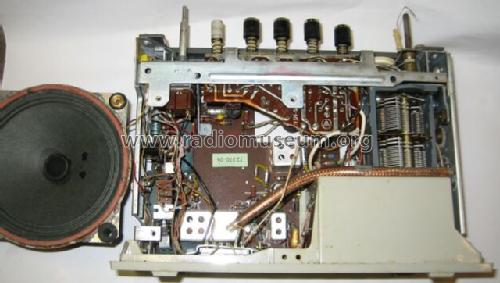

Siemens; D S.&: Club RK82 [Radio] ID = 28594 600x517
Select picture or schematic to display from thumbnails on the right and click for download.
For model Club RK82, Siemens; D (S.& Halske / S. Electrogeräte)

Country:  Germany
Manufacturer / Brand:  Siemens; D (S.& Halske / S. Electrogeräte)
Year: 1966/1967 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9: AF201 AF124 AF125 AF201 AF201 BC108 AC152 AC153 AC176
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Dry Batteries / 5 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 1 W (unknown quality)
from Radiomuseum.org Model: Club RK82 - Siemens; D S.& Halske / S.
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 222 x 159 x 78 mm / 8.7 x 6.3 x 3.1 inch
Notes Bei Betrieb in Autohalterung 1,8 W NF-Ausgangsleistung.
Net weight (2.2 lb = 1 kg) 2.1 kg / 4 lb 10 oz (4.626 lb)
Source of data Handbuch VDRG 1966/1967 / Radiokatalog Band 1, Ernst Erb
