For model Club RM742, Siemens; D (S.& Halske / S. Electrogeräte)

Country:  Germany
Manufacturer / Brand:  Siemens; D (S.& Halske / S. Electrogeräte)
Year: 1990 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10:
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 220 / D: 6 x 1,5 Volt
Loudspeaker 4 Loudspeakers
Power out 5 W (unknown quality)
from Radiomuseum.org Model: Club RM742 - Siemens; D S.& Halske / S.
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 440 x 245 x 115 mm / 17.3 x 9.6 x 4.5 inch
Notes

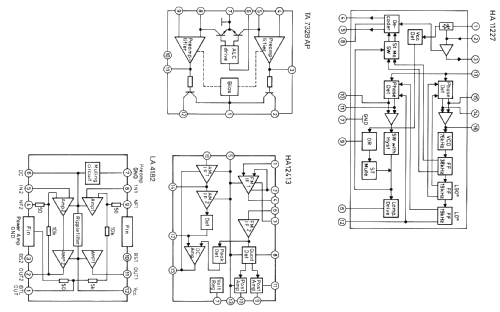

4 ICs; Maximale Ausgangsleistung 2 x 2,5 Watt.

Kurzwellenlupe.

Net weight (2.2 lb = 1 kg) 3.360 kg / 7 lb 6.4 oz (7.401 lb)

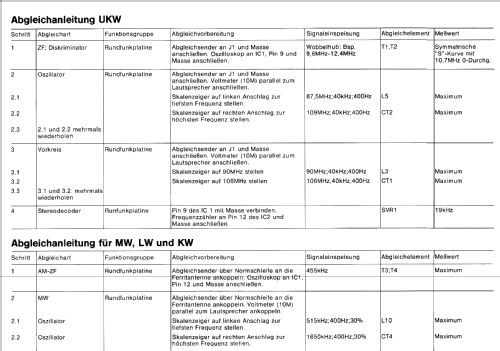

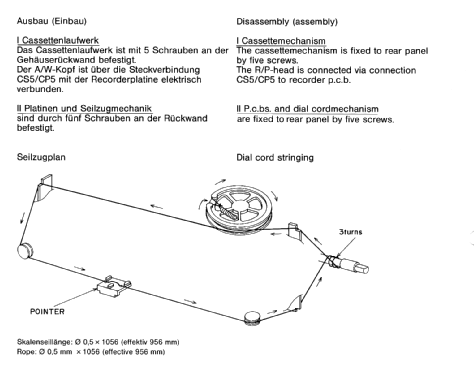

Mentioned in Original Siemens Service Unterlagen

Model page created by Josef Pilz. See "Data change" for further contributors.
