• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1984 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 143379

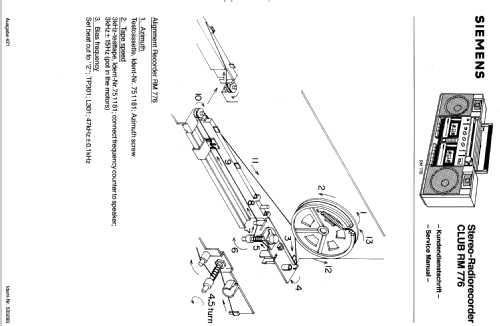

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 18

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 220 / 6 x 1,5 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Club RM776 - Siemens & Halske, -Schuckert

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 540 x 220 x 135 mm / 21.3 x 8.7 x 5.3 inch

• Notes

• 7 ICs; eingebautes Doppelcassetten - Deck.
  2 interne Mikrofone. KW - Lupe.
  Anschlüsse für Stereokopfhörer, Außenmikrofone und externe Lautsprecher, in Farben Braun oder Bronze.



• Net weight (2.2 lb = 1 kg)
• 3.8 kg / 8 lb 5.9 oz (8.37 lb)

• Source of data
• -- Original prospect or advert

• Mentioned in
• Original Siemens Service Unterlagen

• Literature/Schematics (1)
• Prospekt: Siemens Radiogeräte 1984

• Author
• Model page created by Josef Pilz. See "Data change" for further contributors.
