• Year
  • 1986 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 143641

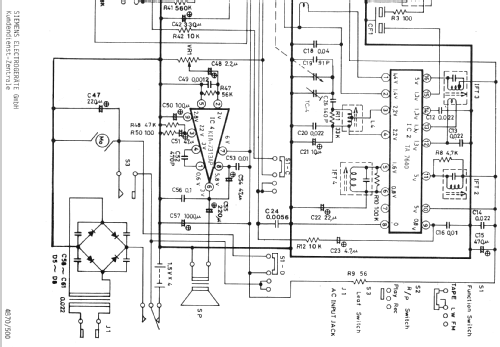

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line / Batteries (any type) / 220 / C: 4 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
  • Power out
  • 0.65 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Club RM853 4 - Siemens & Halske, -Schuckert
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 315 x 150 x 75 mm / 12.4 x 5.9 x 3 inch
  • Notes
  • 4 ICs; TA7358AP TA7640 BA333 KIA7313AP.
  • Net weight (2.2 lb = 1 kg)
  • 1.2 kg / 2 lb 10.3 oz (2.643 lb)
  • Mentioned in
  • Original Siemens Service Unterlagen
  • Literature/Schematics (1)
  • Siemens Audio Video TV 1986
  • Author
  • Model page created by Josef Pilz. See "Data change" for further contributors.
