• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1984

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 142977

Click on the schematic thumbnail to request the schematic as a free document.

• Main principle
• Superheterodyne (common); ZF/IF 465/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 220 / D: 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

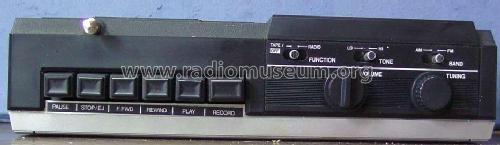

• Model: Club RM 755 - Siemens & Halske, -Schuckert

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 280 x 175 x 75 mm / 11 x 6.9 x 3 inch

• Notes
• 2 IC

• Net weight (2.2 lb = 1 kg)
• 1.390 kg / 3 lb 1 oz (3.062 lb)

• Price in first year of sale
• 99.00 DM

• Mentioned in
• Original Siemens Service Unterlagen

• Author
• Model page created by Josef Pilz. See "Data change" for further contributors.
