• Year
  • 1990 ??
  • Category
  • Television Receiver (TV) or Monitor
  • Radiomuseum.org ID
  • 193204

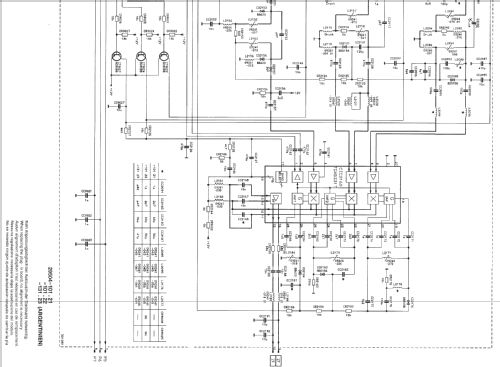

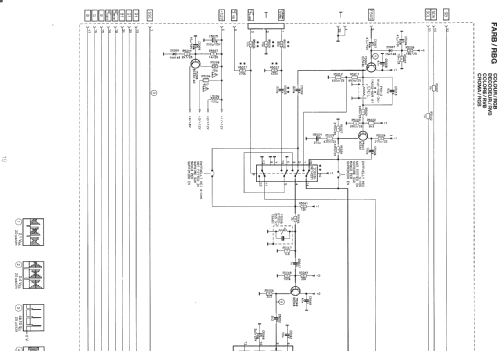

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 1
  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • PLL, Phase-locked loop
  • Wave bands
  • VHF incl. FM and/or UHF (see notes for details)
  • Details
  • Radio Control (+Remote Wire etc)
  • Power type and voltage
  • Alternating Current supply (AC) / 220-240 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: Color TV FS220V4 Ch= CS9105 - Siemens & Halske, -Schuckert
  • Shape
  • Tablemodel, with any shape - general.
  • Notes
  • Siemens Color TV mit Kabeltuner 49+ 1 AV Speicher, TV Norm-Empfang PAL, SECAM Videotext, Fernbedienung FB 103 Top.
  • Literature/Schematics (1)

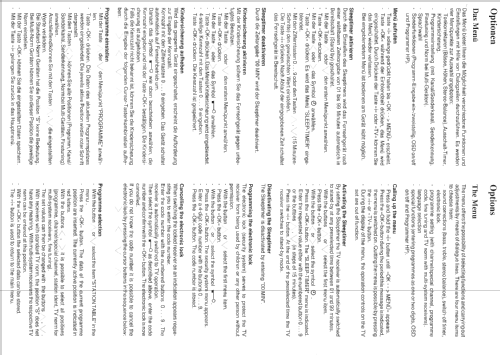

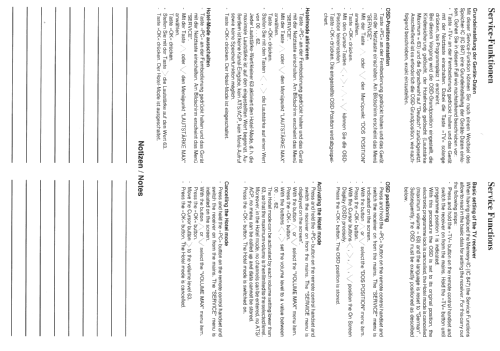

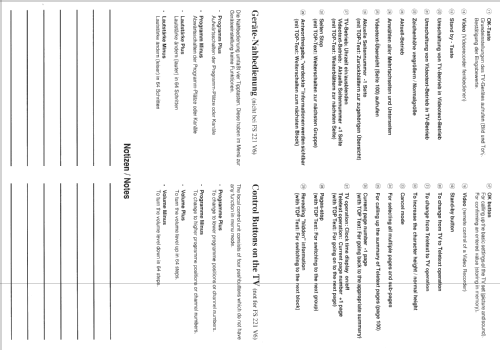

  • Original Siemens Service Unterlagen
  • Author
  • Model page created by Josef Pilz. See "Data change" for further contributors.
