Colour Television FC 214 R6
Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
- Country
- Germany
- Manufacturer / Brand
- Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
- Year
- 1995
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 217286
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 1
- Valves / Tubes
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 230 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

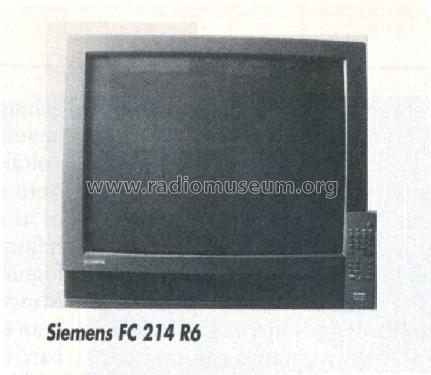

- Model: Colour Television FC 214 R6 - Siemens & Halske, -Schuckert
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 590 x 520 x 440 mm / 23.2 x 20.5 x 17.3 inch
- Notes
- Screen: 63 cm, Power / Stand by: 100/6 W.
Pal, Secam; Audio: B/G, D/K. Preselect: 49 station memories.
- Net weight (2.2 lb = 1 kg)
- 26 kg / 57 lb 4.3 oz (57.269 lb)
- Literature/Schematics (1)
- Teszt Magazin 1995/ 10.
- Author
- Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
