• Year
  • 1990 ??
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 204346

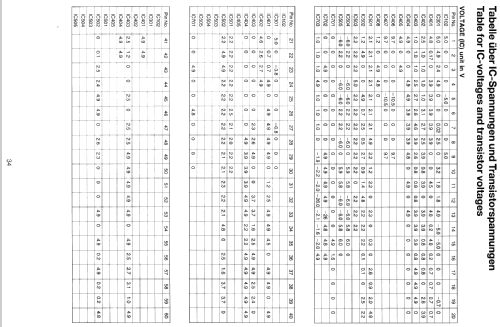

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • CD-Player, -Writer, MD, MOD (audio); Radio Control (+Remote Wire etc)
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: Compact Disc Player RW736 - Siemens & Halske, -Schuckert
  • Shape
  • Book-shelf unit.
  • Notes
  • Compact Disc Player; Dreistrahllaserabtasteinheit SF-86, Frequenzgang 20 bis 20000Hz mit Fernbedienung
  • Author
  • Model page created by Josef Pilz. See "Data change" for further contributors.
