Eladyn-Endverstärker 6SEla2737

Eladyn-Endverstärker 6SEla2737; Siemens; D S.& (ID = 400080) Ampl/Mixer Eladyn-Endverstärker 6SEla2737; Siemens; D S.& (ID = 400083) Ampl/Mixer
Eladyn-Endverstärker 6SEla2737; Siemens; D S.& (ID = 400084) Ampl/Mixer Eladyn-Endverstärker 6SEla2737; Siemens; D S.& (ID = 400081) Ampl/Mixer
Eladyn-Endverstärker 6SEla2737; Siemens; D S.& (ID = 400082) Ampl/Mixer Eladyn-Endverstärker 6SEla2737; Siemens; D S.& (ID = 400093) Ampl/Mixer
Eladyn-Endverstärker 6SEla2737; Siemens; D S.& (ID = 1761688) Ampl/Mixer
Use red slider bar for more.
Eladyn-Endverstärker 6SEla2737; Siemens; D S.& (ID = 400080) Ampl/Mixer

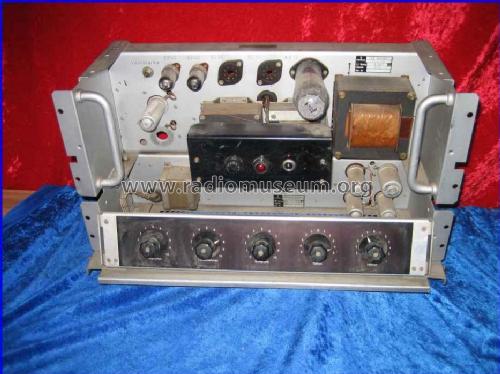

Siemens; D S.&: Eladyn-Endverstärker 6SEla2737 [Ampl/Mixer] ID = 400080 933x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model Eladyn-Endverstärker 6SEla2737, Siemens; D (S.& Halske / S. Electrogeräte)

Country:  Germany
Manufacturer / Brand:  Siemens; D (S.& Halske / S. Electrogeräte)
Year: 1953–1955 Category: Audio Amplifier or -mixer
Valves / Tubes 5: EF40 EF40 EL34 EL34 AZ12
schematic requested
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110-250 Volt
Loudspeaker - This model requires external speaker(s).
Power out 25 W (unknown quality)
from Radiomuseum.org Model: Eladyn-Endverstärker 6SEla2737 - Siemens; D S.& Halske / S.
Material Metal case
Dimensions (WHD) 520 x 170 x 185 mm / 20.5 x 6.7 x 7.3 inch
Notes Gestellverstärker; Frequenzbereich 40-15000 Hz; 1 Eingang, 1 Ausgang. Für Speisung des Steuerverstärkers können 6,3 V~ und 300 V- entnommen werden.
Net weight (2.2 lb = 1 kg) 12 kg / 26 lb 6.9 oz (26.432 lb)
Price in first year of sale 525.00 DM
External source of data Erb
Source of data Kat.d.Rundf.GrossH.1953/54
