• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1932 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 5485

• Number of Tubes
• 4

• Valves / Tubes
• REN1004 REN804 RE604 RGN1054

• Main principle
• TRF without regeneration

• Tuned circuits
• 1 AM circuit(s)

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC)

• Material
• Wooden case

• from Radiomuseum.org

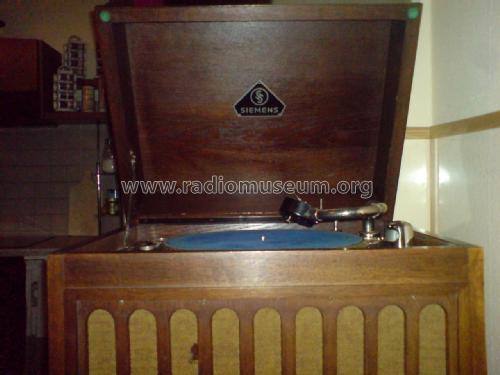

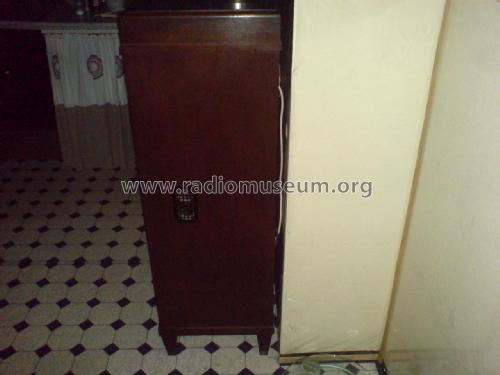

• Model: Elg 17 - Siemens & Halske, -Schuckert

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 510 x 1230 x 400 mm / 20.1 x 48.4 x 15.7 inch

• Source of data
• Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• FS-Bestückungstab. (wahrsch. m.Fehler)
