• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1965–1967

• Category
• Radio module post 1925 (not a part, not a key)

• Radiomuseum.org ID
• 156171

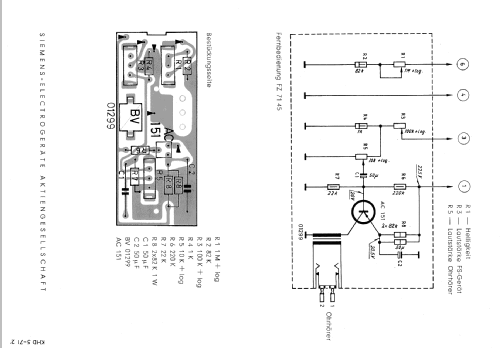

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 1

• Semiconductors
• AC151

• Wave bands
• - without

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• No Power needed

• Loudspeaker
• - - No sound reproduction output.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Fernbedienung FZ7145 - Siemens & Halske, -Schuckert

• Dimensions (WHD)
• 52 x 38 x 118 mm / 2 x 1.5 x 4.6 inch

• Notes
• Für Bildmeister FT76, FT78, FT87, FT88, FT380, FT385, FK387 und FK388; angegebenes Gewicht einschl. Kabel

• Net weight (2.2 lb = 1 kg)
• 0.480 kg / 1 lb 0.9 oz (1.057 lb)

• Mentioned in
• Handbuch VDRG 1966/1967 (z.B.zu Bildmeister FT 88, p. A 94)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Hans-Dieter Haase † 5.2.18. See "Data change" for further contributors.
