• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1938 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 152449

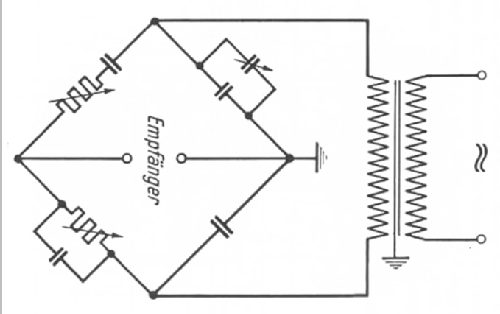

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• - - No sound reproduction output.

• Material
• Wooden case

• from Radiomuseum.org
• Model: Frequenz-Meßbrücke Rel msbr 18a - Siemens & Halske, -Schuckert

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 510 x 350 x 270 mm / 20.1 x 13.8 x 10.6 inch

• Notes
• Frequenzbereich: 30Hz...100kHz, einstellbar in Stufen von 1Hz.

• Net weight (2.2 lb = 1 kg)
• 30 kg / 66 lb 1.3 oz (66.079 lb)

• Price in first year of sale
• 4,000.00 RM

• Mentioned in
• Siemens Messeinrichtungen für die Fernmeldetechnik 1940

• Author
• Model page created by Folkert Rothe. See "Data change" for further contributors.
