Funktelefon W6 Rel526Y327a1b
Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
- Country
- Germany
- Manufacturer / Brand
- Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
- Year
- 1963 ?
- Category
- Commercial Transmitter & Receiver (TRX not Amateur)
- Radiomuseum.org ID
- 306048
- Number of Tubes
- 4
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Transceiver
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Metal case
- from Radiomuseum.org

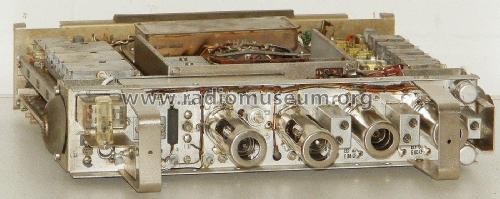

- Model: Funktelefon W6 Rel526Y327a1b - Siemens & Halske, -Schuckert
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 320 x 90 x 350 mm / 12.6 x 3.5 x 13.8 inch
- Notes
-
Fahrzeuggerät für Betriebsfunk.
Frequenzmodulation, 6 Kanäle im 2-Meter-Band (146 - 174 MHz), Quarzsteuerung (Steckquarze), 6 Watt Senderausgangsleistung.
Zugehöriges Bedienteil ist W6 Rel541B351a.
- Net weight (2.2 lb = 1 kg)
- 6.3 kg / 13 lb 14 oz (13.877 lb)
- Author
- Model page created by Siegfried Droese. See "Data change" for further contributors.
