Hamburg-Stecker
Use red slider bar for more.

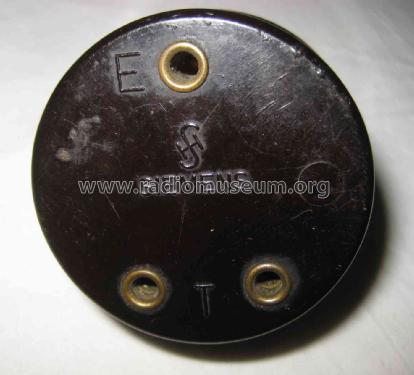

Siemens; D S.&: Hamburg-Stecker [Crystal] ID = 160238 470x440
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1945 ? | Category: Detector-Radio (Crystal or diode, without tubes/transistors) |
| Main principle | Crystal or Solid State Detector; Crystal-detection 1 circuit (no tubes) |
|---|---|
| Tuned circuits | 1 AM circuit(s) |
| Wave bands | Broadcast only (MW). |
| Details | |
| Power type and voltage | No Power needed |
| Loudspeaker | - For headphones or amp. |
| Power out | |
| from Radiomuseum.org | Model: Hamburg-Stecker - Siemens; D S.& Halske / S. |
| Material | Bakelite case |
| Shape | Miscellaneous shapes - described under notes. |
| Dimensions (WHD) | 54 x 32 x 54 mm / 2.1 x 1.3 x 2.1 inch |
| Notes | Detektor-Empfänger als Netz-Stecker, mit Sirutor, auf Lokalsender abgestimmt. Baugleich mit "Berlin-Stecker". |
Model page created by Bernd P. Kieck. See "Data change" for further contributors.
