• Year
  • 1980 ??
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 223939

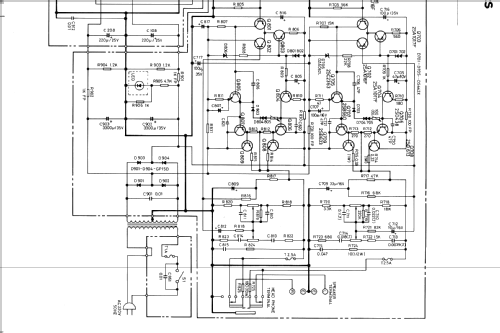

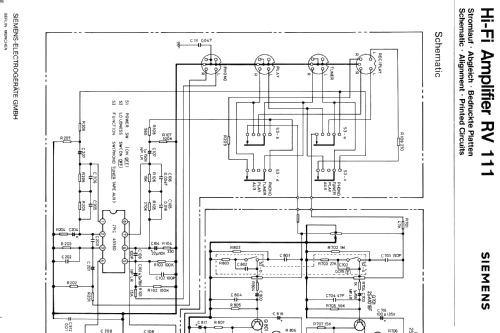

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 50 W (70 W max.)
  • Material
  • Various materials
  • from Radiomuseum.org
  • Model: Hi-Fi Amplifier RV 111 - Siemens & Halske, -Schuckert
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 290 x 65 x 220 mm / 11.4 x 2.6 x 8.7 inch
  • Notes
  • 4 Eingänge Rec/Play, Tuner, Play und Phono. 2x 25 W Sinus an 4 Ohm bei K < 1%. Ausgänge für Lautsprecher und Stereokopfhörer(frontseitig), Loudnessschalter. Leistungsaufnahme max. 150W.
  • Net weight (2.2 lb = 1 kg)
  • 5 kg / 11 lb 0.2 oz (11.013 lb)
  • Mentioned in
  • Siemens Service Unterlagen
  • Author
  • Model page created by Josef Pilz. See "Data change" for further contributors.
