• Year
  • 1980 ??
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 223974

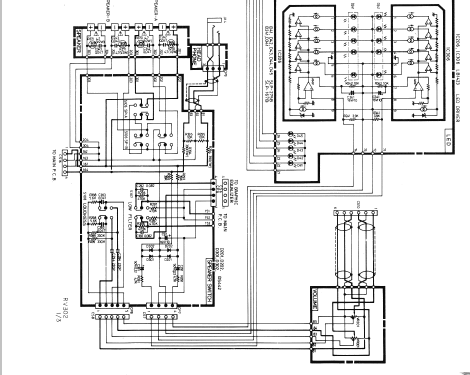

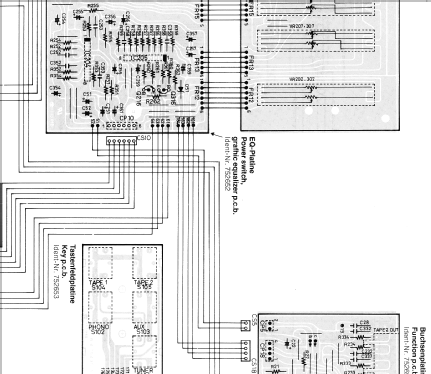

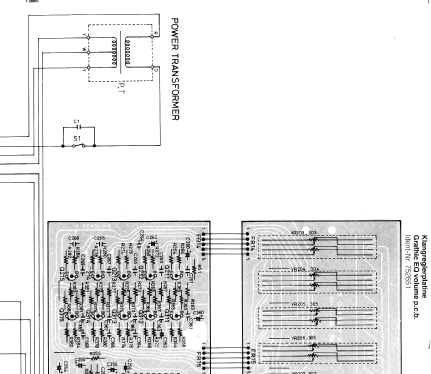

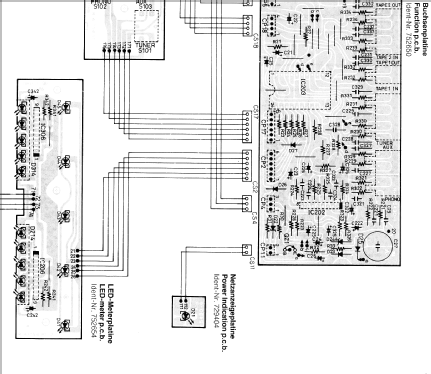

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 90 W (undistorted)
  • Material
  • Metal case
  • from Radiomuseum.org

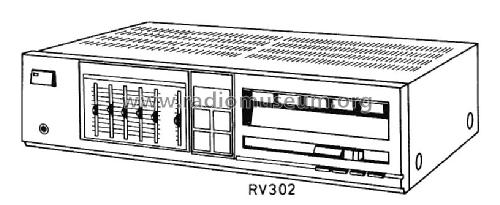

  • Model: HiFi Verstärker RV 302 - Siemens & Halske, -Schuckert
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 420 x 110 x 270 mm / 16.5 x 4.3 x 10.6 inch
  • Notes
  • Stereo Verstärker mit 2x 45 Watt Sinus, Anschlüsse: Tuner, TB 1, TB 2, AUX, Phono, Lautsptrecher und Kopfhöhrer.

    Gehäuse in Farben Braun oder Bronze.

  • Mentioned in
  • Siemens Service Unterlagen
  • Author
  • Model page created by Josef Pilz. See "Data change" for further contributors.
