• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1974–1976

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 29381

• Number of Transistors
• 20

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org

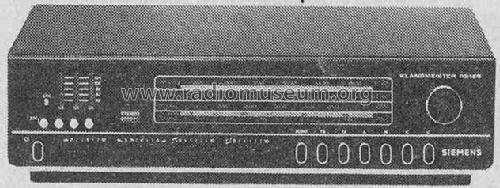

• Model: Klangmeister RS166 Electronic - Siemens & Halske, -Schuckert

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 470 x 120 x 240 mm / 18.5 x 4.7 x 9.4 inch

• Notes
• ICs: 1.
  Stereo-Steuergerät. NF-Verstärker mit 2 Endstufen je 12 W (Musik).

• Net weight (2.2 lb = 1 kg)
• 3.5 kg / 7 lb 11.3 oz (7.709 lb)

• External source of data
• Erb

• Source of data
• Katalog RFP 1974

• Mentioned in
• Handbuch VDRG 1975/1976
