Klangmeister Electronic RG95

Klangmeister Electronic RG95; Siemens; D S.& (ID = 1191705) Radio

Klangmeister Electronic RG95; Siemens; D S.& (ID = 1191710) Radio

Klangmeister Electronic RG95; Siemens; D S.& (ID = 1191707) Radio

Klangmeister Electronic RG95; Siemens; D S.& (ID = 1191709) Radio
Klangmeister Electronic RG95; Siemens; D S.& (ID = 159479) Radio Klangmeister Electronic RG95; Siemens; D S.& (ID = 159480) Radio
Klangmeister Electronic RG95; Siemens; D S.& (ID = 159481) Radio Klangmeister Electronic RG95; Siemens; D S.& (ID = 337819) Radio
Klangmeister Electronic RG95; Siemens; D S.& (ID = 337820) Radio Klangmeister Electronic RG95; Siemens; D S.& (ID = 337824) Radio
Klangmeister Electronic RG95; Siemens; D S.& (ID = 1187627) Radio Klangmeister Electronic RG95; Siemens; D S.& (ID = 1187628) Radio
Klangmeister Electronic RG95; Siemens; D S.& (ID = 1243143) Radio Klangmeister Electronic RG95; Siemens; D S.& (ID = 1243145) Radio
Use red slider bar for more.
Klangmeister Electronic RG95; Siemens; D S.& (ID = 159479) Radio

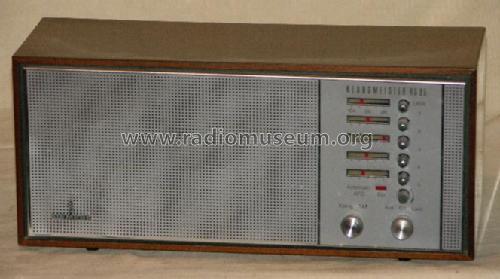

Siemens; D S.&: Klangmeister Electronic RG95 [Radio] ID = 159479 664x371
Select picture or schematic to display from thumbnails on the right and click for download.
For model Klangmeister Electronic RG95, Siemens; D (S.& Halske / S. Electrogeräte)

Country:  Germany
Manufacturer / Brand:  Siemens; D (S.& Halske / S. Electrogeräte)
Year: 1967/1968 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: AF201 AF201 AF201 AF201 AF201 AC153 AC187 AC188 BC108 BC108
Main principle Superheterodyne (common); ZF/IF 10700 kHz
Tuned circuits 10 FM circuit(s)
Wave bands FM Broadcast Band Only
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: Klangmeister Electronic RG95 - Siemens; D S.& Halske / S.
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 345 x 165 x 120 mm / 13.6 x 6.5 x 4.7 inch
Notes

Fünf Stationstasten mit Preomat und jeweils eigener Skala

Baugleich mit Loewe Opta Tempo 92005

Net weight (2.2 lb = 1 kg) 2.2 kg / 4 lb 13.5 oz (4.846 lb)
Price in first year of sale 179.00 DM
External source of data erb
Source of data Handbuch VDRG 1967/1968
Mentioned in Taxliste Franzis Verlag
