• Year
  • 1963/1964
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 24785

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Number of Transistors
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Tuned circuits
  • 6 AM circuit(s)     10 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 127; 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 3 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org

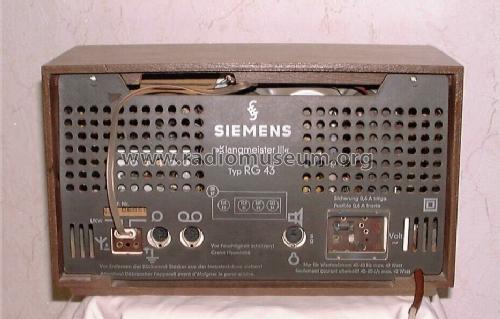

  • Model: Klangmeister III RG43 - Siemens & Halske, -Schuckert
  • Dimensions (WHD)
  • 380 x 220 x 170 mm / 15 x 8.7 x 6.7 inch
  • Notes
  • Hersteller (zumindest Chassis) ist Loewe Opta.

    Chassis baugleich oder weitgehend identisch mit Loewe Opta Truxa 42 054

  • Net weight (2.2 lb = 1 kg)
  • 4.9 kg / 10 lb 12.7 oz (10.793 lb)
  • Price in first year of sale
  • 289.00 DM
  • External source of data
  • Erb
