Klangmeister RG291

Klangmeister RG291; Siemens & Halske, - (ID = 803320) Radio

Klangmeister RG291; Siemens & Halske, - (ID = 803321) Radio

Klangmeister RG291; Siemens & Halske, - (ID = 803322) Radio

Klangmeister RG291; Siemens & Halske, - (ID = 803323) Radio

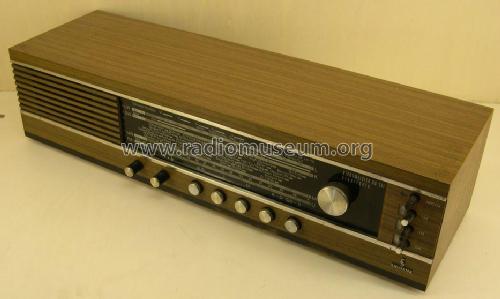

Klangmeister RG291; Siemens & Halske, - (ID = 1734496) Radio Klangmeister RG291; Siemens & Halske, - (ID = 1734500) Radio
Klangmeister RG291; Siemens & Halske, - (ID = 803319) Radio Klangmeister RG291; Siemens & Halske, - (ID = 1734495) Radio
Klangmeister RG291; Siemens & Halske, - (ID = 1734498) Radio Klangmeister RG291; Siemens & Halske, - (ID = 1734501) Radio
Use red slider bar for more.
Klangmeister RG291; Siemens & Halske, - (ID = 1734496) Radio
Siemens & Halske, -: Klangmeister RG291 [Radio] ID = 1734496 933x247
Select picture or schematic to display from thumbnails on the right and click for download.
For model Klangmeister RG291, Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

Country:  Germany
Manufacturer / Brand:  Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
Year: 1969 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 11: BF195 BF194 BF194 BF194 BF194 BF194 BC148 BC178 AC179 AC178 AC117
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Klangmeister RG291 - Siemens & Halske, -Schuckert
Material Wooden case
Shape Tablemodel, low profile (big size).
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
