Klangmeister RG404

Klangmeister RG404; Siemens; D S.& (ID = 360705) Radio

Klangmeister RG404; Siemens; D S.& (ID = 360706) Radio

Klangmeister RG404; Siemens; D S.& (ID = 360707) Radio
Klangmeister RG404; Siemens; D S.& (ID = 1338853) Radio Klangmeister RG404; Siemens; D S.& (ID = 431002) Radio
Use red slider bar for more.
Klangmeister RG404; Siemens; D S.& (ID = 1338853) Radio

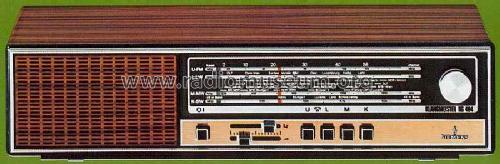

Siemens; D S.&: Klangmeister RG404 [Radio] ID = 1338853 900x296
Select picture or schematic to display from thumbnails on the right and click for download.
For model Klangmeister RG404, Siemens; D (S.& Halske / S. Electrogeräte):
aus siemenskatalog 1973

Country:  Germany
Manufacturer / Brand:  Siemens; D (S.& Halske / S. Electrogeräte)
Year: 1972/1973 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10:
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Klangmeister RG404 - Siemens; D S.& Halske / S.
Material Plastics (no bakelite or catalin)
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 510 x 130 x 170 mm / 20.1 x 5.1 x 6.7 inch
Notes Gespreiztes 49-m-Band.
Net weight (2.2 lb = 1 kg) 3 kg / 6 lb 9.7 oz (6.608 lb)
External source of data Erb
Source of data Handbuch VDRG 1972/1973
