• Country
• Austria

• Manufacturer / Brand
• Siemens-Austria (WSW); Wien

• Year
• 1967

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 114054

• • alternative name: Ges. für Technische Glaswaren
  • Brand: Wiener Schwachstrom Werke (WSW)

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EBF89 ECC83 EM84 ELL80 EZ80

• Number of Transistors
• 5

• Semiconductors
• AF137 AF137 AF137 SFT351 SFT353

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org

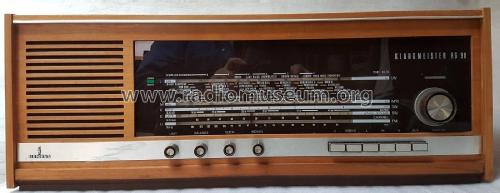

• Model: Klangmeister RG98 - Siemens-Austria WSW; Wien

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 670 x 250 x 255 mm / 26.4 x 9.8 x 10 inch

• Notes
• FM-Stereo mit externen Lautsprechern. Ein Lautsprecher eingebaut.

• Source of data
• - - Data from my own collection

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Leo Brtna. See "Data change" for further contributors.
