• Year
  • 1975–1977
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 118059

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 36
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz; 8 AF stage(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • from Radiomuseum.org

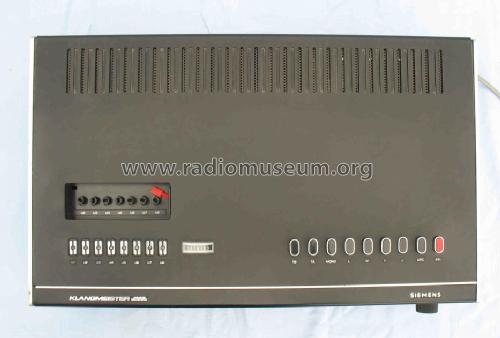

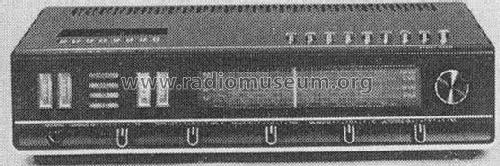

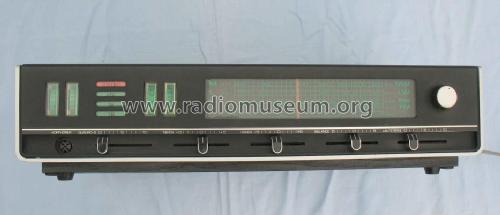

  • Model: Klangmeister RS212 Superelectronic - Siemens & Halske, -Schuckert
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 500 x 120 x 320 mm / 19.7 x 4.7 x 12.6 inch
  • Notes
  • ICs: 5.
    Siemens HiFi-Stereo-Steuergerät RS212 Superelectronic.
    Ausgangsleistung: 2× 16 W (Sinus); Quadrosound-Wiedergabe möglich; 8 UKW-Vorwahl-Sensortasten.
  • Net weight (2.2 lb = 1 kg)
  • 7.7 kg / 16 lb 15.4 oz (16.96 lb)
  • Literature/Schematics (1)

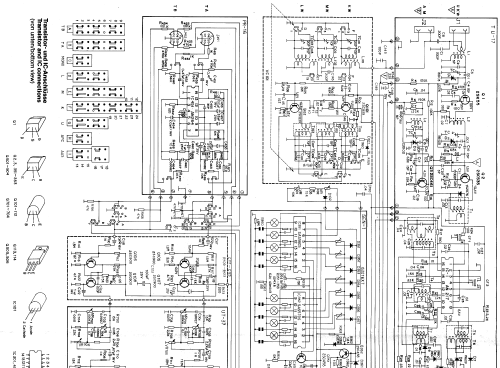

  • -- Schematic
  • Author
  • Model page created by Pius Steiner. See "Data change" for further contributors.
