• Year
  • 1974/1975
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 29382

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 55
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Tuned circuits
  • 7 AM circuit(s)     15 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 220 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

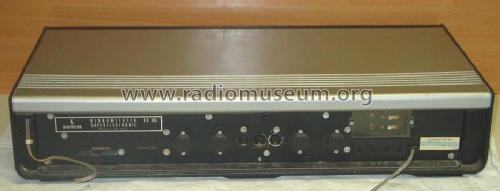

  • Model: Klangmeister RS305 Superelectronic - Siemens & Halske, -Schuckert
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 640 x 132 x 300 mm / 25.2 x 5.2 x 11.8 inch
  • Notes
  • ICs: 2.
    HiFi-Stereo-Steuergerät. NF-Verstärker mit 2 Endstufen je 30 W (Sinus).
  • Net weight (2.2 lb = 1 kg)
  • 9 kg / 19 lb 13.2 oz (19.824 lb)
  • External source of data
  • Erb
