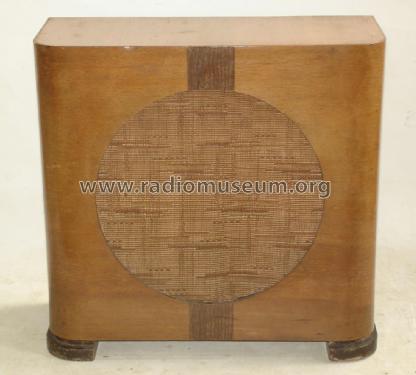

Siemens; D S.&: Lautsprecher 040 [Speaker-P] ID = 429418 604x604
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1932 | Category: Loudspeaker, headphone or earphone |
| Wave bands | - without |
|---|---|
| Details | |
| Power type and voltage | No Power needed |
| Loudspeaker | Magnetic loudspeaker (reed) of high quality (free mooving - only possible past 1931). |
| Power out | |
| from Radiomuseum.org | Model: Lautsprecher 040 - Siemens; D S.& Halske / S. |
| Material | Wooden case |
| Shape | Tablemodel, low profile (big size). |
| Dimensions (WHD) | 395 x 370 x 160 mm / 15.6 x 14.6 x 6.3 inch |
| Notes | Gehäuse ähnlich 080, Edelholz gemasert. Auch in Pressstoff als 032. |
| Price in first year of sale | 44.00 RM |
| Collectors' prices | |
| Source of data | Katalog Radio-Zentrale Prohaska 1932/33 |
Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
