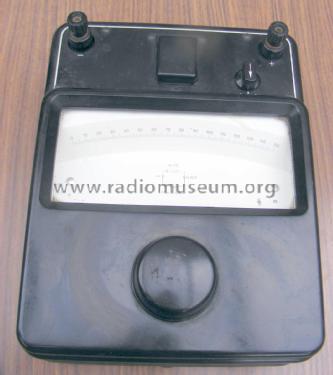

Lichtmarken-Galvanometer L24 U3-25

Lichtmarken-Galvanometer L24 U3-25; Siemens; D S.& (ID = 473773) Equipment Lichtmarken-Galvanometer L24 U3-25; Siemens; D S.& (ID = 473774) Equipment
Lichtmarken-Galvanometer L24 U3-25; Siemens; D S.& (ID = 2012586) Equipment Lichtmarken-Galvanometer L24 U3-25; Siemens; D S.& (ID = 2012591) Equipment
Use red slider bar for more.
Lichtmarken-Galvanometer L24 U3-25; Siemens; D S.& (ID = 473773) Equipment
Siemens; D S.&: Lichtmarken-Galvanometer L24 U3-25 [Equipment] ID = 473773 716x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Lichtmarken-Galvanometer L24 U3-25, Siemens; D (S.& Halske / S. Electrogeräte)

Country:  Germany
Manufacturer / Brand:  Siemens; D (S.& Halske / S. Electrogeräte)
Year: 1950 ?? Category: Service- or Lab Equipment
Wave bands - without
Details
Power type and voltage Powered by external power supply or a main unit. / 6 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Lichtmarken-Galvanometer L24 U3-25 - Siemens; D S.& Halske / S.
Material Bakelite or Plastics (type unknown)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 196 x 255 x 130 mm / 7.7 x 10 x 5.1 inch
Notes

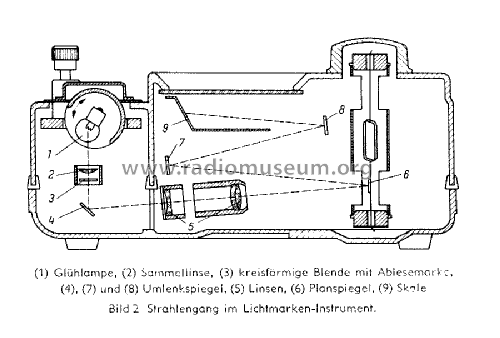

Dieses Lichtmarken-Instrument diente als Ausschlagsgalvanometer zum Messen kleiner Gleichströme und -spannungen in Labor und Forschung. Neuartige Spannbandlagerung des Kernmagneten. Anzeigetoleranz 0,5 %.
Unterschiedliche Ausführungen: 0,3-30 mV, 0,3-30 µA.
Die Versorgung für AC/DC 6 V/5 W-Glühlampe erfolgte extern. In der Stromausführung entspricht 1 Teilstrich 0,12 µA.

Source of data -- Original-techn. papers.

Model page created by Willi Ribbe. See "Data change" for further contributors.
