Lichtmarken-Galvanometer 10 µA

Lichtmarken-Galvanometer 10 µA; Siemens; D S.& (ID = 988184) Equipment Lichtmarken-Galvanometer 10 µA; Siemens; D S.& (ID = 988185) Equipment

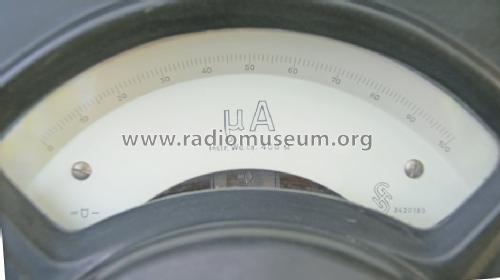

Lichtmarken-Galvanometer 10 µA; Siemens; D S.& (ID = 988186) Equipment
Use red slider bar for more.
Lichtmarken-Galvanometer 10 µA; Siemens; D S.& (ID = 988184) Equipment
Siemens; D S.&: Lichtmarken-Galvanometer 10 µA [Equipment] ID = 988184 715x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model Lichtmarken-Galvanometer 10 µA, Siemens; D (S.& Halske / S. Electrogeräte)

Country:  Germany
Manufacturer / Brand:  Siemens; D (S.& Halske / S. Electrogeräte)
Year: 1940 ?? Category: Service- or Lab Equipment
Wave bands - without
Details
Power type and voltage Powered by external power supply or a main unit. / 6 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Lichtmarken-Galvanometer 10 µA - Siemens; D S.& Halske / S.
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 240 x 190 x 140 mm / 9.4 x 7.5 x 5.5 inch
Notes Siemens Lichtmarken-Galvanometer.
10 µA Vollausschlag/Full Scale.
Innenwiderstand Ri= 400 Ω.
Auflösung/Resolution 0.1 µA.
Externe Speisung der Beleuchtungslampe.
Net weight (2.2 lb = 1 kg) 3.150 kg / 6 lb 15 oz (6.938 lb)

Model page created by Jean Marchal. See "Data change" for further contributors.
