Log. ZF-Verstärker 50/100kHz S45034-D920-A102

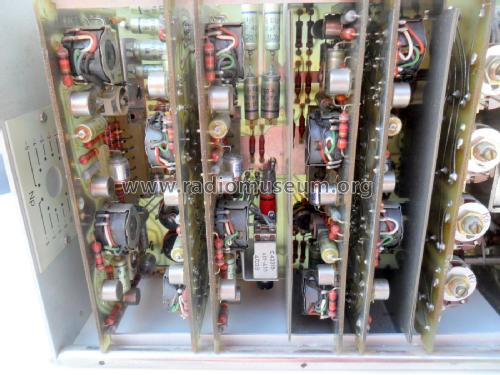

Log. ZF-Verstärker 50/100kHz S45034-D920-A102; Siemens; D S.& (ID = 1991424) Equipment Log. ZF-Verstärker 50/100kHz S45034-D920-A102; Siemens; D S.& (ID = 1991425) Equipment
Log. ZF-Verstärker 50/100kHz S45034-D920-A102; Siemens; D S.& (ID = 1991426) Equipment Log. ZF-Verstärker 50/100kHz S45034-D920-A102; Siemens; D S.& (ID = 1994802) Equipment
Log. ZF-Verstärker 50/100kHz S45034-D920-A102; Siemens; D S.& (ID = 1994804) Equipment Log. ZF-Verstärker 50/100kHz S45034-D920-A102; Siemens; D S.& (ID = 1994806) Equipment
Use red slider bar for more.
Log. ZF-Verstärker 50/100kHz S45034-D920-A102; Siemens; D S.& (ID = 1991424) Equipment
Siemens; D S.&: Log. ZF-Verstärker 50/100kHz S45034-D920-A102 [Equipment] ID = 1991424 1255x1657
Select picture or schematic to display from thumbnails on the right and click for download.
For model Log. ZF-Verstärker 50/100kHz S45034-D920-A102, Siemens; D (S.& Halske / S. Electrogeräte)

Country:  Germany
Manufacturer / Brand:  Siemens; D (S.& Halske / S. Electrogeräte)
Year: 1971 Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) 20: AFY24
Main principle Radio Frequency Amplification only
Wave bands - without
Details
Power type and voltage Powered by external power supply or a main unit.
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Log. ZF-Verstärker 50/100kHz S45034-D920-A102 - Siemens; D S.& Halske / S.
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 105 x 180 x 220 mm / 4.1 x 7.1 x 8.7 inch
Notes

Log. ZF-Verstärker-Einschub  50/100 kHz

Skala in dB, alternativ in Np (im Chassisgehäuse zum Austausch befestigt).
Eingang     Z= 600 Ohm
Zeitbasis umschaltbar in zwei Stufen.

Halbleiter sind mehrfach vorhanden.

Net weight (2.2 lb = 1 kg) 2.4 kg / 5 lb 4.6 oz (5.286 lb)

Model page created by Oskar Elm. See "Data change" for further contributors.
