- Country
- Germany
- Manufacturer / Brand
- Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
- Year
- 1979
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 128141
aus siemenskatalog 1981
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 21
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 460 kHz
- Tuned circuits
- 5 AM circuit(s) 7 FM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Batteries / addl. power jack / 6; 4 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 0.6 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Melodie RM602 - Siemens & Halske, -Schuckert
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 195 x 34 x 115 mm / 7.7 x 1.3 x 4.5 inch
- Notes
- 1 IC und 1 Quartzfilter in der FM ZF.
- Net weight (2.2 lb = 1 kg)
- 0.730 kg / 1 lb 9.7 oz (1.608 lb)
- Mentioned in

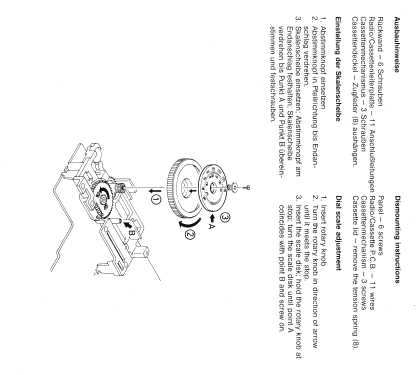

- Original Siemens Service Unterlagen
- Literature/Schematics (1)
- -- Original-techn. papers.
- Literature/Schematics (2)
- Funkschau (22/1979, S. 1272 / Internationale Funkausstellung)
- Author
- Model page created by Josef Pilz. See "Data change" for further contributors.
