Melodie RT-702 OIRT

Melodie RT-702; Siemens; D S.& (ID = 954933) Radio Melodie RT-702; Siemens; D S.& (ID = 954934) Radio
Melodie RT-702; Siemens; D S.& (ID = 954935) Radio Melodie RT-702; Siemens; D S.& (ID = 954936) Radio
Melodie RT-702; Siemens; D S.& (ID = 954937) Radio Melodie RT-702; Siemens; D S.& (ID = 954939) Radio
Melodie RT-702; Siemens; D S.& (ID = 954940) Radio Melodie RT-702; Siemens; D S.& (ID = 954943) Radio
Use red slider bar for more.

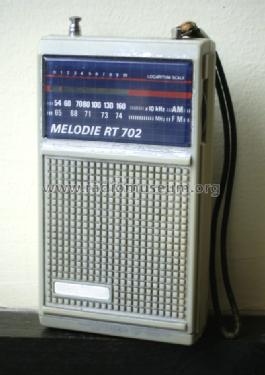

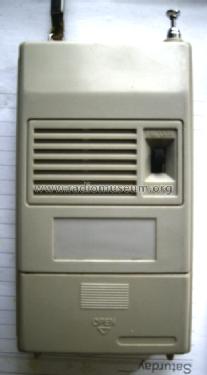

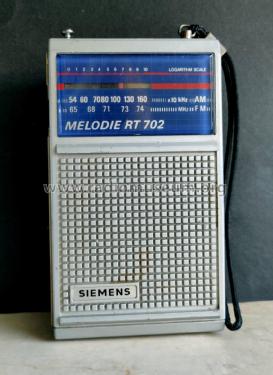

Melodie RT-702; Siemens; D S.& (ID = 954933) Radio
Siemens; D S.&: Melodie RT-702 [Radio] ID = 954933 658x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model Melodie RT-702 OIRT, Siemens; D (S.& Halske / S. Electrogeräte):
Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Germany
Manufacturer / Brand:  Siemens; D (S.& Halske / S. Electrogeräte)
Year: 1978 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 2:
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details

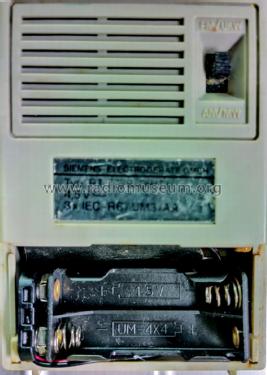

Power type and voltage Dry Batteries / 3 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch
Power out 0.15 W (unknown quality)
from Radiomuseum.org Model: Melodie RT-702 [OIRT] - Siemens; D S.& Halske / S.
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 75 x 135 x 35 mm / 3 x 5.3 x 1.4 inch
Notes 1 IC: TDA 1083 für AM/FM Audioverstärkung. FM-OIRT: 65-74 MHz.
Net weight (2.2 lb = 1 kg) 0.3 kg / 0 lb 10.6 oz (0.661 lb)
Source of data - - Data from my own collection

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
