Meßsender - RC-Oscillator W2100
Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
- Country
- Germany
- Manufacturer / Brand
- Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
- Year
- 1980 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 363069

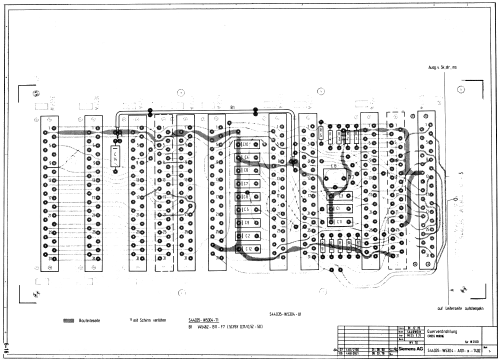

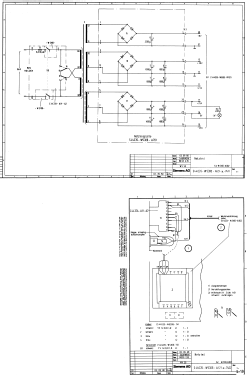

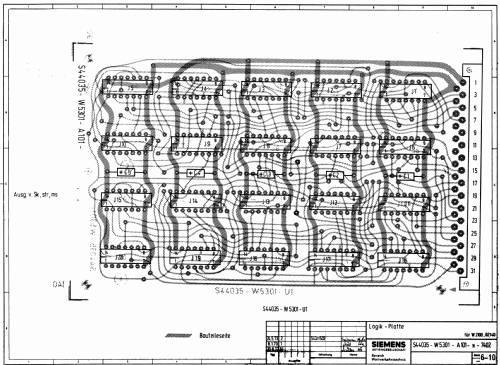

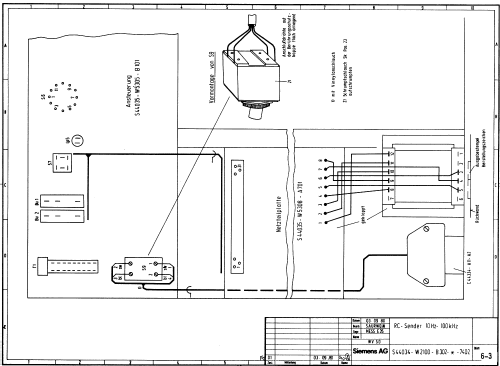

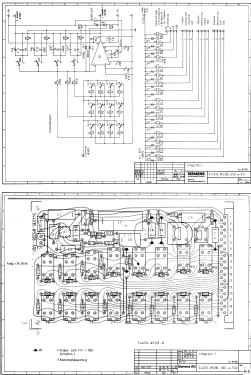

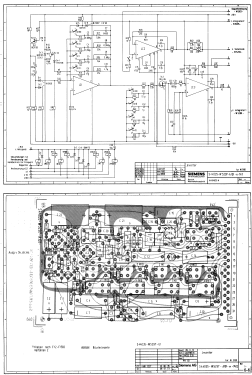

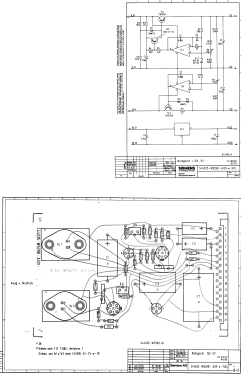

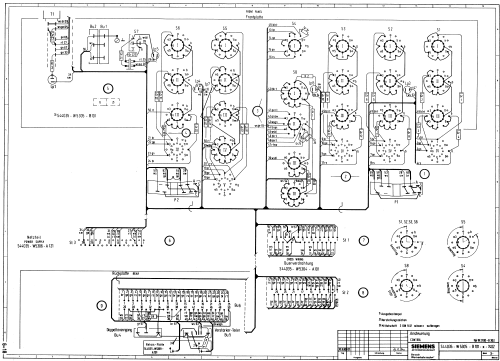

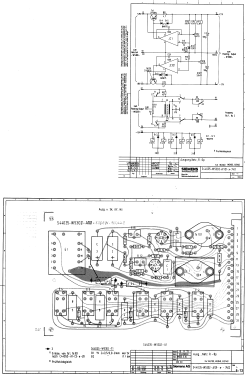

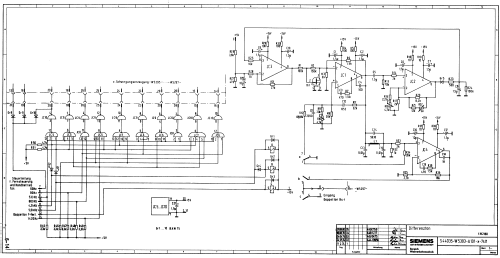

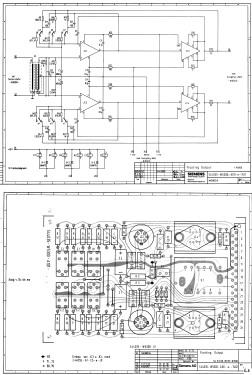

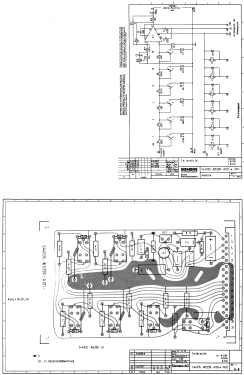

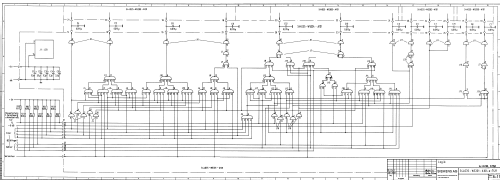

Aus dem Gerätehandbuch
Click on the schematic thumbnail to request the schematic as a free document.
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 100-140; 200-264 Volt
- Material
- Metal case
- from Radiomuseum.org
- Model: Meßsender - RC-Oscillator W2100 - Siemens & Halske, -Schuckert
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 448 x 150 x 445 mm / 17.6 x 5.9 x 17.5 inch
- Notes
-
Klirrarmer Meßsender W2100 mit einem Frequenzbereich von 10 Hz ... 100 kHz.
- Net weight (2.2 lb = 1 kg)
- 10 kg / 22 lb 0.4 oz (22.026 lb)
- Mentioned in
- -- Original-techn. papers.
| Gerätehandbuch W2100 | 1942 KB |
- Documents regarding this model
- Author
- Model page created by a member from D. See "Data change" for further contributors.
