For model Mittelsuper 511U, Siemens-Austria (WSW); Wien

Country:  Austria
Manufacturer / Brand:  Siemens-Austria (WSW); Wien
alternative name

Ges. für Technische Glaswaren
Brand
Wiener Schwachstrom Werke (WSW)
Year: 1950/1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: UCH42 UAF42 UAF42 UL41 UM4 UY41 NTC-Resistor
Main principle Superheterodyne (common); ZF/IF 452 kHz
Tuned circuits 6 AM circuit(s)

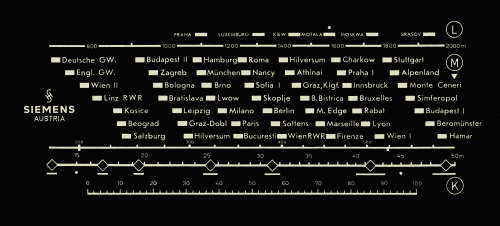

Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 110; 150; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
Power out
from Radiomuseum.org Model: Mittelsuper 511U - Siemens-Austria WSW; Wien

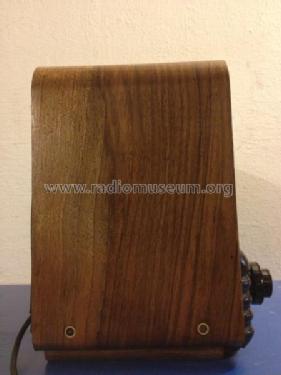

Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 420 x 260 x 230 mm / 16.5 x 10.2 x 9.1 inch
Notes 2 Ausführungen:
Nußholzkassette mit dunkelbrauner Frontplatte
Birkenholzkassette mit elfenbeinfarbiger Frontplatte.
Net weight (2.2 lb = 1 kg) 6.5 kg / 14 lb 5.1 oz (14.317 lb)
Price in first year of sale 1'290.00 öS
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Lange-Nowisch
Mentioned in Radiotechnik, Die, Wien (RT 42) (5009B)
Literature/Schematics (1) -- Original-techn. papers.
