Multimeter +/- µA Multizet M819.9.1B-015

Multimeter +/- µA Multizet M819.9.1B-015; Siemens & Halske, - (ID = 1465527) Equipment Multimeter +/- µA Multizet M819.9.1B-015; Siemens & Halske, - (ID = 1465529) Equipment
Multimeter +/- µA Multizet M819.9.1B-015; Siemens & Halske, - (ID = 1465531) Equipment Multimeter +/- µA Multizet M819.9.1B-015; Siemens & Halske, - (ID = 1465532) Equipment
Multimeter +/- µA Multizet M819.9.1B-015; Siemens & Halske, - (ID = 1465533) Equipment Multimeter +/- µA Multizet M819.9.1B-015; Siemens & Halske, - (ID = 1465535) Equipment
Multimeter +/- µA Multizet M819.9.1B-015; Siemens & Halske, - (ID = 1465536) Equipment Multimeter +/- µA Multizet M819.9.1B-015; Siemens & Halske, - (ID = 1465539) Equipment
Use red slider bar for more.
Multimeter +/- µA Multizet M819.9.1B-015; Siemens & Halske, - (ID = 1465527) Equipment
Siemens & Halske, -: Multimeter +/- µA Multizet M819.9.1B-015 [Equipment] ID = 1465527 933x1231
Select picture or schematic to display from thumbnails on the right and click for download.
For model Multimeter +/- µA Multizet M819.9.1B-015, Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

Country:  Germany
Manufacturer / Brand:  Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
Year: 1968 Category: Service- or Lab Equipment
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Multimeter +/- µA Multizet M819.9.1B-015 - Siemens & Halske, -Schuckert
Material Plastics (no bakelite or catalin)
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 130 x 200 x 85 mm / 5.1 x 7.9 x 3.3 inch
Notes

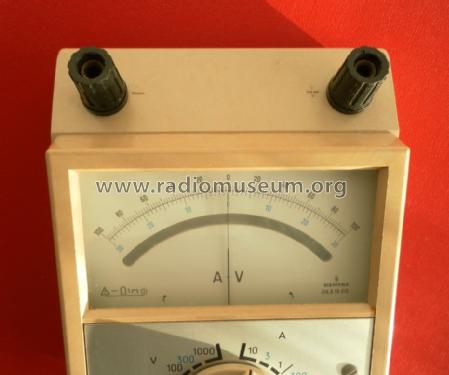

Classic high quality Siemens Multimeter model +/- µA Multizet M819.9.1B-015 (Voltage and Current), full analog center scale dial and mirror, with surge protection provided by a fuse.

Current: 10µA to 10Amp, 1%; Fuse: F10/250G

Voltage: 100kOhm/Volt; 30mV to 600V, 1%;  1000V, 1.5%.

Net weight (2.2 lb = 1 kg) 1.150 kg / 2 lb 8.5 oz (2.533 lb)
Mentioned in Funk-Technik (FT) (12/1968, S. 465 / Neuvorstellung, Hannover-Messe)

Model page created by Jose Mesquita. See "Data change" for further contributors.
