Multimeter B1002

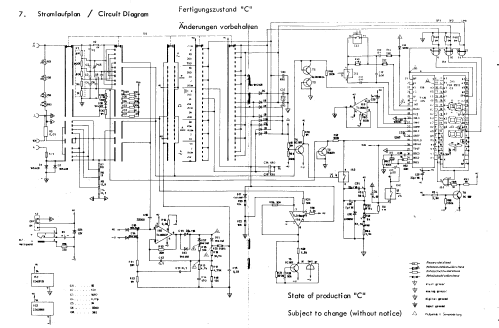

Multimeter B1002; Siemens; D S.& (ID = 1169927) Equipment

Multimeter B1002; Siemens; D S.& (ID = 1170611) Equipment
Multimeter B1002; Siemens; D S.& (ID = 1169159) Equipment Multimeter B1002; Siemens; D S.& (ID = 1169160) Equipment
Multimeter B1002; Siemens; D S.& (ID = 1169935) Equipment Multimeter B1002; Siemens; D S.& (ID = 1496411) Equipment
Multimeter B1002; Siemens; D S.& (ID = 1496412) Equipment Multimeter B1002; Siemens; D S.& (ID = 1496414) Equipment
Multimeter B1002; Siemens; D S.& (ID = 1496415) Equipment
Use red slider bar for more.
Multimeter B1002; Siemens; D S.& (ID = 1169159) Equipment
Siemens; D S.&: Multimeter B1002 [Equipment] ID = 1169159 933x576
Select picture or schematic to display from thumbnails on the right and click for download.
For model Multimeter B1002, Siemens; D (S.& Halske / S. Electrogeräte)

Country:  Germany
Manufacturer / Brand:  Siemens; D (S.& Halske / S. Electrogeräte)
Year: 1983 Category: Service- or Lab Equipment
Valves / Tubes 6:
Semiconductors (the count is only for transistors) 6: CD4066 CD4070 ICL7126 TL066 BC167 BC637 2N3904 LM385 1N4148 1N4007 1N5408
Wave bands - without
Details
Power type and voltage Dry Batteries / 1x 9 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Multimeter B1002 - Siemens; D S.& Halske / S.
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 94 x 43 x 174 mm / 3.7 x 1.7 x 6.9 inch
Notes Digital-Multimeter für Strom-, Spannungs- und Widerstandsmessungen. 3 1/2 stellige Flüssigkristallanzeige. Insgesamt 27 Messbereiche.< br />
Gleichspannung: 200 mV, 2 V, 20 V, 200 V, 1000 V
Wechselspannung: 200 mV, 2 V, 20 V, 200 V, 750 V
Gleichstrom: 2 mA, 20 mA, 200 mA, 2 A, 10 A
Wechselstrom: 2 mA, 20 mA, 200 mA, 2 A, 10 A
Widerstand: 200 Ohm, 2 kOhm, 20 kOhm, 200 kOhm, 2 MOhm, 20 MOhm

Verschiedene Bestückungen per Fertigungsstand. Wiedergegeben ist Fertigungsstand "P". 5 ICs: CD4070B, CD4066B, 3x TL066CP
Net weight (2.2 lb = 1 kg) 0.285 kg / 0 lb 10 oz (0.628 lb)
Price in first year of sale 360.00 DM
Source of data -- Original-techn. papers.
Mentioned in Siemens, Elektrische Meßgeräte, MP51, 1983; S. 2/4,2/5

Model page created by Otto Frosinn. See "Data change" for further contributors.
