Oscillar M214

Oscillar M214; Siemens; D S.& (ID = 2103084) Equipment

Oscillar M214; Siemens; D S.& (ID = 2103086) Equipment

Oscillar M214; Siemens; D S.& (ID = 2103087) Equipment

Oscillar M214; Siemens; D S.& (ID = 2103088) Equipment

Oscillar M214; Siemens; D S.& (ID = 2103089) Equipment

Oscillar M214; Siemens; D S.& (ID = 2103091) Equipment

Oscillar M214; Siemens; D S.& (ID = 2103092) Equipment

Oscillar M214; Siemens; D S.& (ID = 2103094) Equipment

Oscillar M214; Siemens; D S.& (ID = 2103096) Equipment

Oscillar M214; Siemens; D S.& (ID = 2103097) Equipment
Oscillar M214; Siemens; D S.& (ID = 1696738) Equipment Oscillar M214; Siemens; D S.& (ID = 1696739) Equipment
Oscillar M214; Siemens; D S.& (ID = 1696740) Equipment Oscillar M214; Siemens; D S.& (ID = 1696741) Equipment
Use red slider bar for more.
Oscillar M214; Siemens; D S.& (ID = 1696738) Equipment
Siemens; D S.&: Oscillar M214 [Equipment] ID = 1696738 933x623
Select picture or schematic to display from thumbnails on the right and click for download.
For model Oscillar M214, Siemens; D (S.& Halske / S. Electrogeräte)

Country:  Germany
Manufacturer / Brand:  Siemens; D (S.& Halske / S. Electrogeräte)
Year: 1967–1970 Category: Service- or Lab Equipment
Valves / Tubes 1: D13-44GH/15
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle ZF/IF - kHz
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 230 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Oscillar M214 - Siemens; D S.& Halske / S.
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 445 x 270 x 551 mm / 17.5 x 10.6 x 21.7 inch
Notes

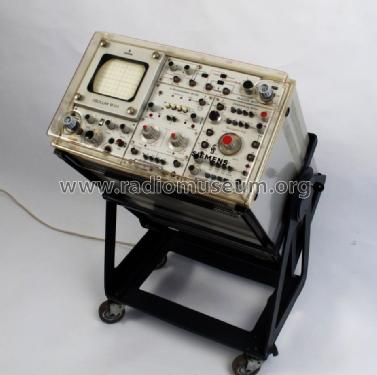

Siemens Hochleistungsoszilloskop in Laborausführung. Bandbreite des Y-Endverstärkers im Grundgerät 180MHz. Nachbeschleunigungsspannung 30kV. Nutzbarer Bildschirm 8x10cm mit Innenraster.

Bestehend aus:

  • Grundgerät M214-A1
  • Zeitablenk-Einschub M204-A1
  • Zweikanalverstärker-Einschub M230-A1
  • Messzusatz-Einschub M234-A1


Nachfolger des Zweikanalverstärker-Einschub M230-A1 ist der M07230-A2

Net weight (2.2 lb = 1 kg) 17 kg / 37 lb 7.1 oz (37.445 lb)
Mentioned in -- Original-techn. papers.

Model page created by Detlef Boeder. See "Data change" for further contributors.
