PLL Synthesized Receiver RP653 G4

PLL Synthesized Receiver RP653 G4; Siemens; D S.& (ID = 2169897) Radio PLL Synthesized Receiver RP653 G4; Siemens; D S.& (ID = 2169898) Radio
PLL Synthesized Receiver RP653 G4; Siemens; D S.& (ID = 2169899) Radio PLL Synthesized Receiver RP653 G4; Siemens; D S.& (ID = 2169900) Radio
PLL Synthesized Receiver RP653 G4; Siemens; D S.& (ID = 1097064) Radio PLL Synthesized Receiver RP653 G4; Siemens; D S.& (ID = 1097065) Radio
PLL Synthesized Receiver RP653 G4; Siemens; D S.& (ID = 1097066) Radio PLL Synthesized Receiver RP653 G4; Siemens; D S.& (ID = 1097067) Radio

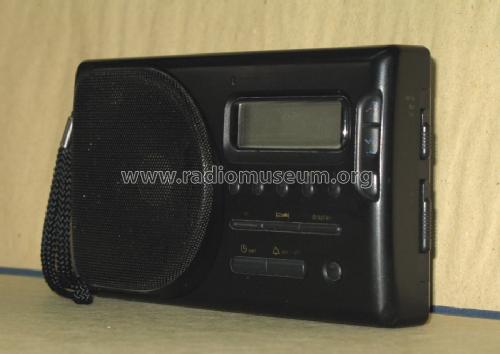

PLL Synthesized Receiver RP653 G4; Siemens; D S.& (ID = 1097068) Radio PLL Synthesized Receiver RP653 G4; Siemens; D S.& (ID = 1097069) Radio
Use red slider bar for more.
PLL Synthesized Receiver RP653 G4; Siemens; D S.& (ID = 2169897) Radio
Siemens; D S.&: PLL Synthesized Receiver RP653 G4 [Radio] ID = 2169897 1024x647
Select picture or schematic to display from thumbnails on the right and click for download.
For model PLL Synthesized Receiver RP653 G4, Siemens; D (S.& Halske / S. Electrogeräte)

Country:  Germany
Manufacturer / Brand:  Siemens; D (S.& Halske / S. Electrogeräte)
Year: 1988 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle PLL, Phase-locked loop
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Batteries / addl. power jack / 4 × 1,5 / 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
Power out
from Radiomuseum.org Model: PLL Synthesized Receiver RP653 G4 - Siemens; D S.& Halske / S.
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Dimensions (WHD) 190 x 110 x 48 mm / 7.5 x 4.3 x 1.9 inch
Notes 20 memories, timer and HWS human wake system.
Source of data - - Data from my own collection

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
