• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1929–1931

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 5564

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• REN1104 REN1104 REN1104 REN1004 RE604 RGN1054

• Main principle
• TRF with regeneration; 2 Special; 2 AF stage(s)

• Tuned circuits
• 3 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org

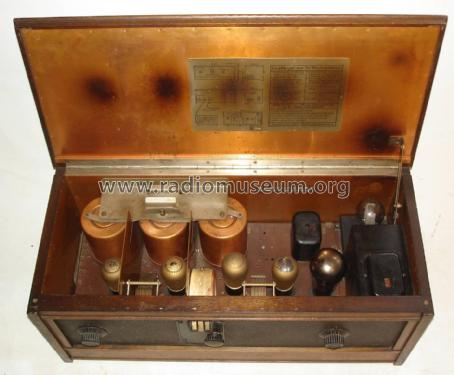

• Model: Rfe31a - Siemens & Halske, -Schuckert

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 625 x 250 x 285 mm / 24.6 x 9.8 x 11.2 inch

• Notes

• Neutrodyne-Schaltung in Stufe 1 und 2

• Source of data
• Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange + FS-Bestückungstabellen
