• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1929/1930

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 5549

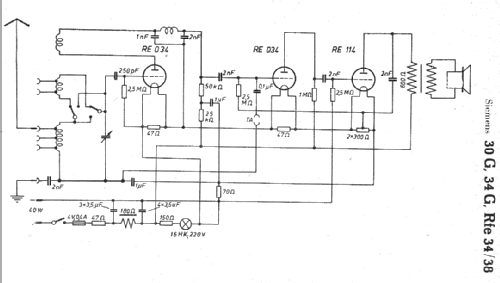

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• RE034s RE034s RE134S

• Main principle
• TRF (Tuned-Radio-Frequency but use of regeneration unknown); 1 AF stage(s); something special ? Please give information (notes)

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Direct Current supply (DC)

• Loudspeaker
• - For headphones or amp.

• from Radiomuseum.org
• Model: Rfe34G - Siemens & Halske, -Schuckert

• Source of data
• Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Röhren in FS-Bestückungstabellen
