• Year
  • 1984 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 89408

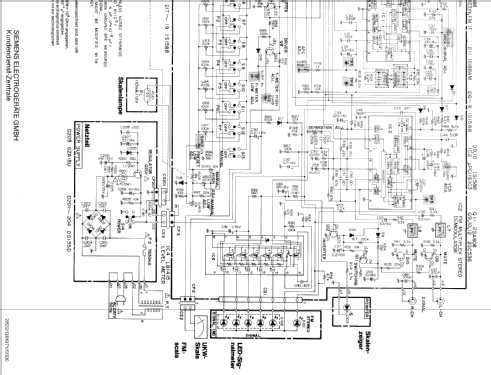

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: RH150 - Siemens & Halske, -Schuckert
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 430 x 60 x 280 mm / 16.9 x 2.4 x 11 inch
  • Notes
  • 7 Stationstasten.
  • Net weight (2.2 lb = 1 kg)
  • 3.4 kg / 7 lb 7.8 oz (7.489 lb)
  • Source of data
  • - - Data from my own collection
  • Author
  • Model page created by Peter Böhm. See "Data change" for further contributors.
