• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1981–1983

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 175806

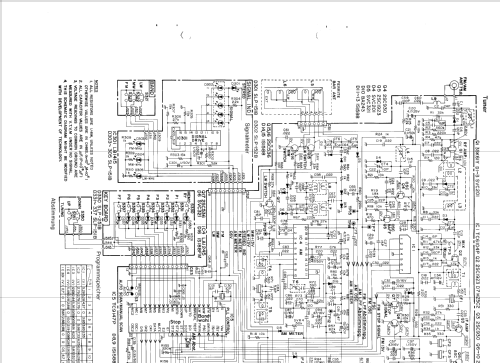

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• PLL, Phase-locked loop

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Stereo Tuner RH-300 - Siemens & Halske, -Schuckert

• Shape
• Rack

• Dimensions (WHD)
• 440 x 64.5 x 250 mm / 17.3 x 2.5 x 9.8 inch

• Notes

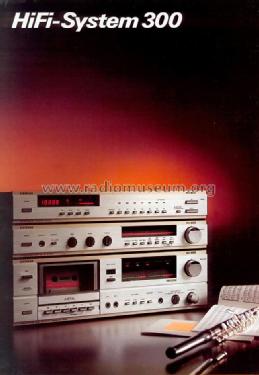

• Siemens HiFi System 300 = tuner RH 300 + receiver RV 300 + cassette deck RC 300 + turntable RW 300.

• Net weight (2.2 lb = 1 kg)
• 3.3 kg / 7 lb 4.3 oz (7.269 lb)

• Price in first year of sale
• 499.00 DM

• Source of data
• -- Original prospect or advert

• Literature/Schematics (1)
• Siemens HiFi Systeme '82

• Author
• Model page created by Jaroslav Hlavaty. See "Data change" for further contributors.
