• Country
• Germany

• Manufacturer / Brand
• Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München

• Year
• 1979–1983

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 156979

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

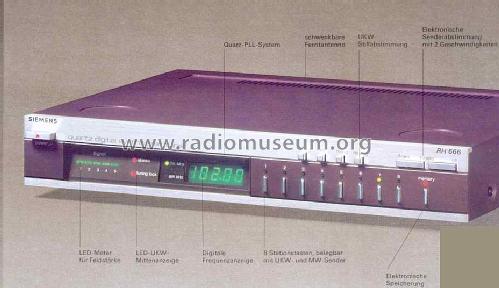

• Model: RH 666 - Siemens & Halske, -Schuckert

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 298 x 55 x 250 mm / 11.7 x 2.2 x 9.8 inch

• Notes
• AM/FM Quartz PLL Digital Synthesizer Tuner. 8 Stationsspeicher.
  Farbe: bronze/braun.

• Net weight (2.2 lb = 1 kg)
• 3 kg / 6 lb 9.7 oz (6.608 lb)

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
