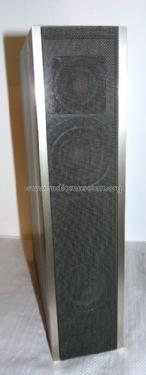

RL514; Siemens; D S.& (ID = 719943) Speaker-P
Siemens; D S.&: RL514 [Speaker-P] ID = 719943 313x800
Select picture or schematic to display from thumbnails on the right and click for download.
For model RL514, Siemens; D (S.& Halske / S. Electrogeräte)

Country:  Germany
Manufacturer / Brand:  Siemens; D (S.& Halske / S. Electrogeräte)
Year: 1970 ?? Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: RL514 - Siemens; D S.& Halske / S.
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 110 x 440 x 290 mm / 4.3 x 17.3 x 11.4 inch
Notes Siemens Lautsprecher

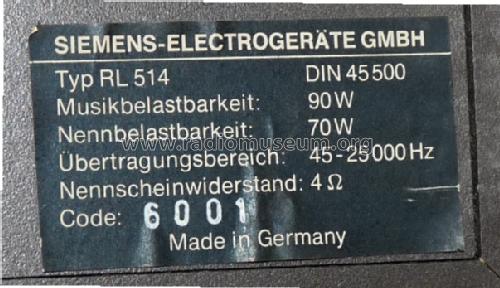

Musikbelastbarkeit: 90W, Nennbelastbarkeit: 70W
Übertragungsbereich: 45-25000Hz
Nennwiederstand: 4 Ohm;
Net weight (2.2 lb = 1 kg) 5.4 kg / 11 lb 14.3 oz (11.894 lb)

Model page created by Peter Böhm. See "Data change" for further contributors.
