- Country
- Germany
- Manufacturer / Brand
- Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
- Year
- 1985
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 130418
D_Siemens_RS724

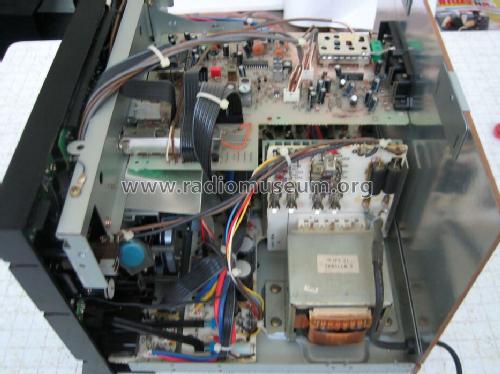

D_Siemens_RS724_Innen
D_Siemens_RS724_Rueckw.
D_Siemens_RS724_Typenschild
D_Siemens_RS724_Innen
D_Siemens_RS724_Innen
D_Siemens_RS724_Innen
D_Siemens_RS724_Innen
Siemenskatalog 1986

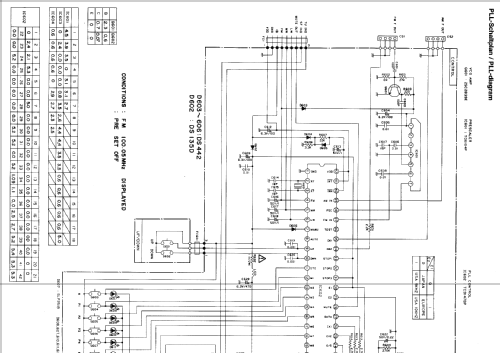

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Metal case
- from Radiomuseum.org
- Model: RS724 - Siemens & Halske, -Schuckert
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 330 x 200 x 250 mm / 13 x 7.9 x 9.8 inch
- Notes
- 7 UKW Stationstasten
FM-Stereo.
- Net weight (2.2 lb = 1 kg)
- 6 kg / 13 lb 3.5 oz (13.216 lb)
- Source of data
- - - Data from my own collection
- Author
- Model page created by Klemens Rhode. See "Data change" for further contributors.
