• Year
  • 1967–1969
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 27166

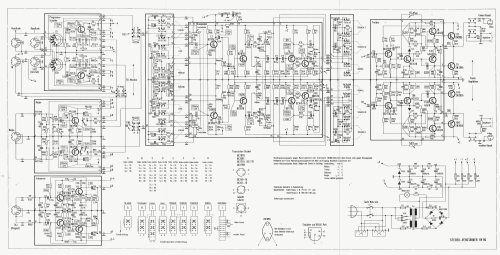

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 28
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 220 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: RV90 - Siemens & Halske, -Schuckert
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 445 x 120 x 290 mm / 17.5 x 4.7 x 11.4 inch
  • Notes
  • HiFi-Stereo-Verstärker mit 2 Endstufen je 50 W (Sinus).
    Teil der HiFi-Stereo-Anlage Klangmeister 90 zu der auch noch der Tuner RS90 und die LS-Boxen RL10 gehören.

    Jeder Halbleitertyp einmal gelistet.

  • Net weight (2.2 lb = 1 kg)
  • 9.2 kg / 20 lb 4.2 oz (20.264 lb)
  • Price in first year of sale
  • 1,030.00 DM
  • External source of data
  • erb
  • Literature/Schematics (1)
  • -- Original-techn. papers.
