RW546

RW546; Siemens; D S.& (ID = 363864) R-Player RW546; Siemens; D S.& (ID = 363865) R-Player
RW546; Siemens; D S.& (ID = 363866) R-Player RW546; Siemens; D S.& (ID = 1106198) R-Player
RW546; Siemens; D S.& (ID = 1338231) R-Player
Use red slider bar for more.
RW546; Siemens; D S.& (ID = 363864) R-Player
Siemens; D S.&: RW546 [R-Player] ID = 363864 900x644
Select picture or schematic to display from thumbnails on the right and click for download.
For model RW546, Siemens; D (S.& Halske / S. Electrogeräte)

Country:  Germany
Manufacturer / Brand:  Siemens; D (S.& Halske / S. Electrogeräte)
Year: 1974–1977 Category: Sound/Video Recorder and/or Player
Wave bands - without
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: RW546 - Siemens; D S.& Halske / S.
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 495 x 175 x 360 mm / 19.5 x 6.9 x 14.2 inch

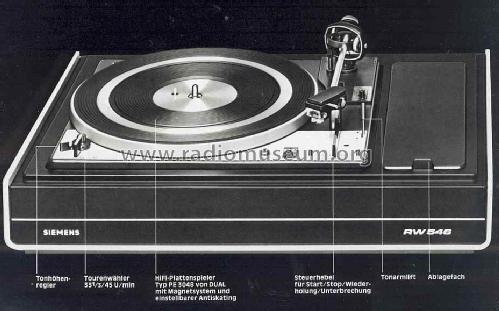

Notes Siemens HiFi-Automatikspieler RW546.
Phono-Chassis = PE3048; Magnetsystem M75D; Übertragungsbereich: 20···20000 Hz; Geschwindigkeiten: 33/45 UpM; Reibradantrieb.
Net weight (2.2 lb = 1 kg) 9 kg / 19 lb 13.2 oz (19.824 lb)
Source of data Handbuch VDRG 1974/1975
Mentioned in Handbuch VDRG 1975/1976 (und 1976/77)

Model page created by Peter Böhm. See "Data change" for further contributors.
