• Country
• Italy

• Manufacturer / Brand
• Siemens Italia; Milano

• Year
• 1941/1942

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 96261

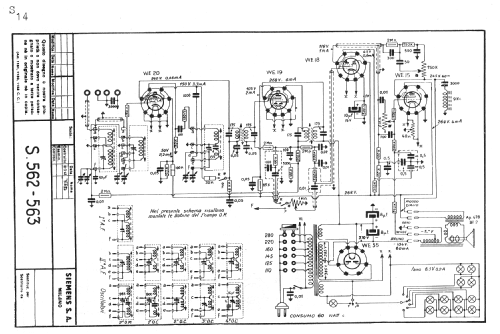

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• WE20 WE19 WE15 WE55 WE18

• Main principle
• Superheterodyne (common); ZF/IF 469 kHz

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 160; 220; 280 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: S562 - Siemens Italia; Milano

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 570 x 460 x 350 mm / 22.4 x 18.1 x 13.8 inch

• Source of data
• Guida Pratica Antique Radio III (2000)

• Mentioned in
• Collezione di Schemi, Scuola Radio Elettra 1953

• Literature/Schematics (1)

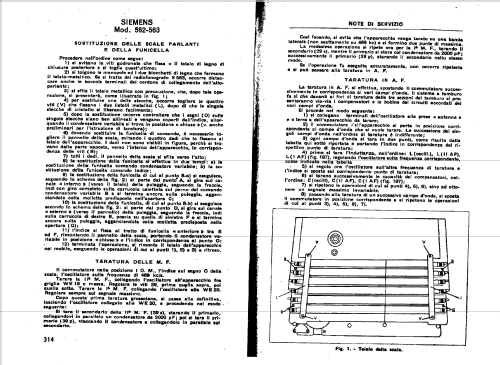

• Riparazioni - Scuola Radio Elettra (pag. S14)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.

• Other Models

• Here you find 214 models, 158 with images and 164 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Siemens Italia; Milano
