Sat-Receiver FR 114 M6
Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
- Country
- Germany
- Manufacturer / Brand
- Siemens (& Halske, -Schuckert Werke SSW, Electrogeräte); Berlin, München
- Year
- 1995 ?
- Category
- Digital terrestrial, Internet and SAT receiver (also analogue)
- Radiomuseum.org ID
- 252376

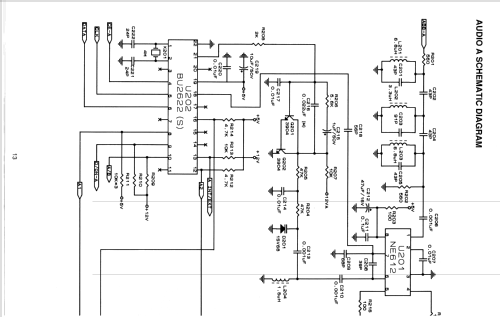

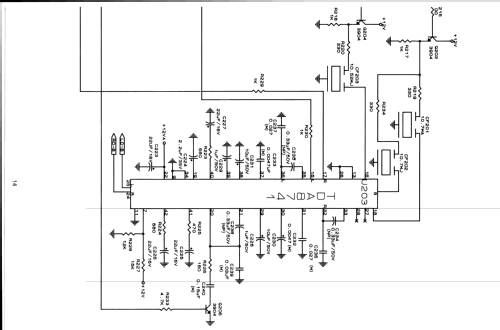

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- PLL, Phase-locked loop; ZF/IF 479,5 MHz kHz
- Wave bands
- SAT-IF
- Details
- Remote Control (with wire or wireless)
- Power type and voltage
- Alternating Current supply (AC) / 230 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: Sat-Receiver FR 114 M6 - Siemens & Halske, -Schuckert
- Shape
- Book-shelf unit.
- Notes
-
Analoger SAT-Receiver FR 114 M6
Eingangsfrequenz 900-2050 MHz,
Fernsteuerung FR 114.
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by a member from D. See "Data change" for further contributors.
