• Year
  • 1987 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 145426

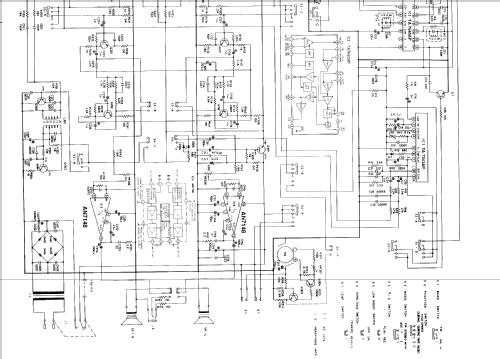

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 9
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Line / Batteries (any type) / 220 / 6 x 1,5 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Power out
  • 4 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Stereo Radiorecorder RM920G4 - Siemens & Halske, -Schuckert
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Notes
  • 6 IC; Doppel Cassetten Deck, Musikleistung 2x2 Watt.
  • Mentioned in
  • Original Siemens Service Unterlagen
  • Author
  • Model page created by Josef Pilz. See "Data change" for further contributors.
